    Resistive Load BankResistive Load Bank
    Introduction
    Resistive load bank(AC Load Bank, Dummy Load Bank, Generator Load Bank,Load Bank for Generator Testing) is a device which can simulate the real-life resistive loads and provides a rigorous test regime for power supplies from 1kW to 60MW. The “load” of a resistive load bank is created by the conversion of electrical energy to heat by power resistors. It mainly used to test and maintenance of Engine Generators, Storage Battery Systems, UPS Systems, Inverters, Ground Power Units, Auxiliary Power Units, Aircraft Power Generators, Wind Generators, Hydro Generators etc.

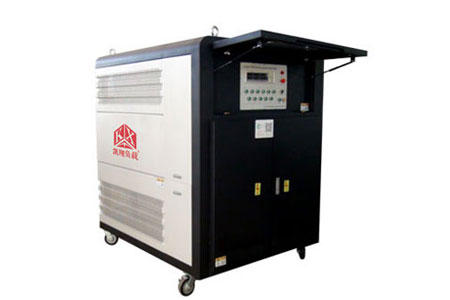

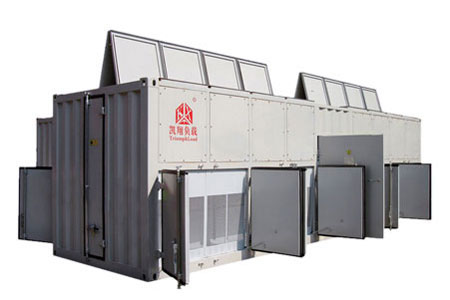

    Resistive load bank are available in stationary type for permanent installation(Permanent Load Bank) or portable type(Portable Load Bank) with lifting rings, castors. Larger load banks, typically above 1250KW, are based on an ISO container construction. Special finishes including custom paint colors and stainless steel casings can be supplied.

    Main features
    1.Control mode: (1)local manual control panel (2)remote manual control box (3) remote console (include manual panel and PC control)(4)laptop control
    2. Protection function: overvoltage, overcurrent, overheat, over low blowing rate, blower overheat, blower phase sequence reverse protection, smoke alarm etc.
    3. Cooling: industrial heavy duty blower, horizon air intake, upwards outlet, low noise.
    4. Power consumption components: made by special alloy resistance, high temperature resisting, high heat dissipation capability, high heat stability, no naked light, safety and reliability. Running temperature is 1/3 of rating.
    5. Weather-proof structure: containerized structure provides ultra protection, protection grade higher than IP55.
    6. Material and coating: the body adopt cold-rolled steel plate that processed by galvanizing corrosion protection, powder coated and spray paint.
    7. Integrated & modularization design: easy to installation, maintenance and transportation.

    Technical Parameters

    Model Installed Capacity Power Factor Load Voltage Dimension
    W*D*H(mm)
    Weight(kg)
    AC400-20k 21kw 1 3 phase 400V 50HZ/60HZ 480*485*680 30
    AC400-100k 110kw 700*900*900 80
    AC400-200k 210kw 1200*1500*1500 200
    AC400-500k 510kw 1460*1980*1800 750
    AC400-1000k 1010kw 1600*2400*2100 1500
    AC400-2000k 2010kw 6058*2438*2591 5000
    AC400-3000k 3010kw 7000
    AC400-4400k 4410kw 8000

    The parameters is only for reference, pls contact supplier for exact information
